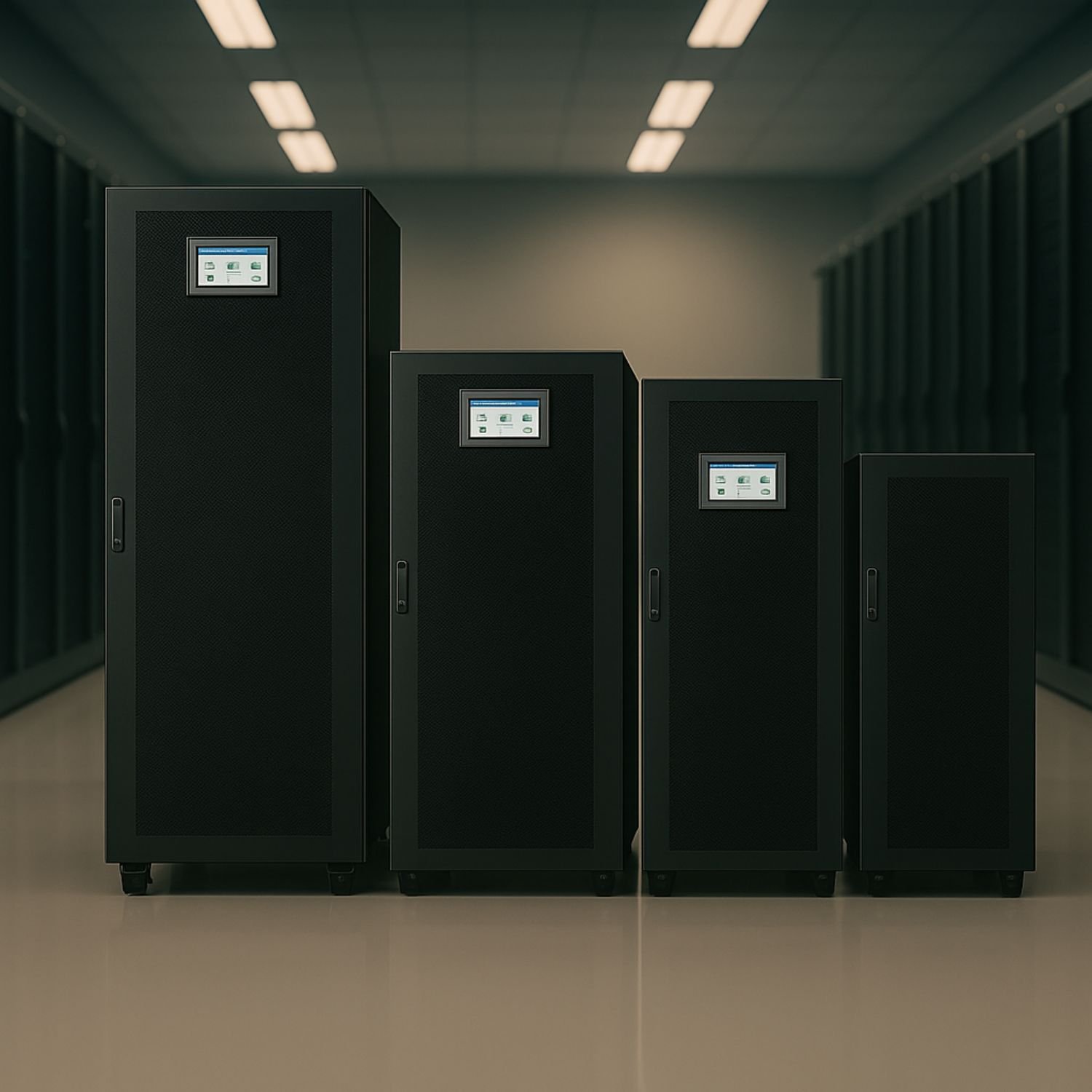

UPS LXi660B – 400 kVA ~ 1200 kVA | PF 1.0
UPS LXi660B – 400 kVA ~ 1200 kVA | PF 1.0
UPS LXi660B – 400 kVA ~ 1200 kVA | PF 1.0
Applications
- LXi66400 – 400 kVA / 400 kW
- LXi66500 – 500 kVA / 500 kW
- LXi66600 – 600 kVA / 600 kW
- LXi66800 – 800 kVA / 800 kW
- LXi661000 – 1000 kVA / 1000 kW
- LXi661200 – 1200 kVA / 1200 kW
Technical Specifications
Input:
Voltage: 138–485 Vac (wide range, load derating below 35%).
Power Factor: ≥0.99.
THDi: <3%.
Output:
Voltage: 380 / 400 / 415 Vac ±1%.
Waveform: Pure Sinewave.
Efficiency: 97% Online | 99% ECO Mode.
Power Factor: 1.0.
Batteries:
Voltage: 480 Vdc (360–600 V selectable).
Configurable: 30–50 pcs, 12V batteries.
Overload Capacity:
105–110% for 60 min.
110–125% for 10 min.
125–150% for 1 min.
150% for 200 ms.
System:
Parallelable: Up to 4 Units.
Communication: RS485, SNMP, dry contacts.
Display: 7-inch LCD Touch Screen.
Environment:
Operating Temp.: 0°C ~ 55°C.
Humidity: 0–95% (non-condensing).
Altitude: ≤1000 m (derating 1% per 100 m above).
Noise: ≤70 dB.
Protection: Short-circuit, overload, over-temp, under/over-voltage, fan failure, battery low.
Key Features
Power Range: 400 kVA ~ 1200 kVA (expandable up to 4800 kW with parallel cabinets).
Power Factor: 1.0 – delivers full rated power (kVA = kW).
High Efficiency:
97% Online Double Conversion Mode.
99% ECO Mode for energy savings.

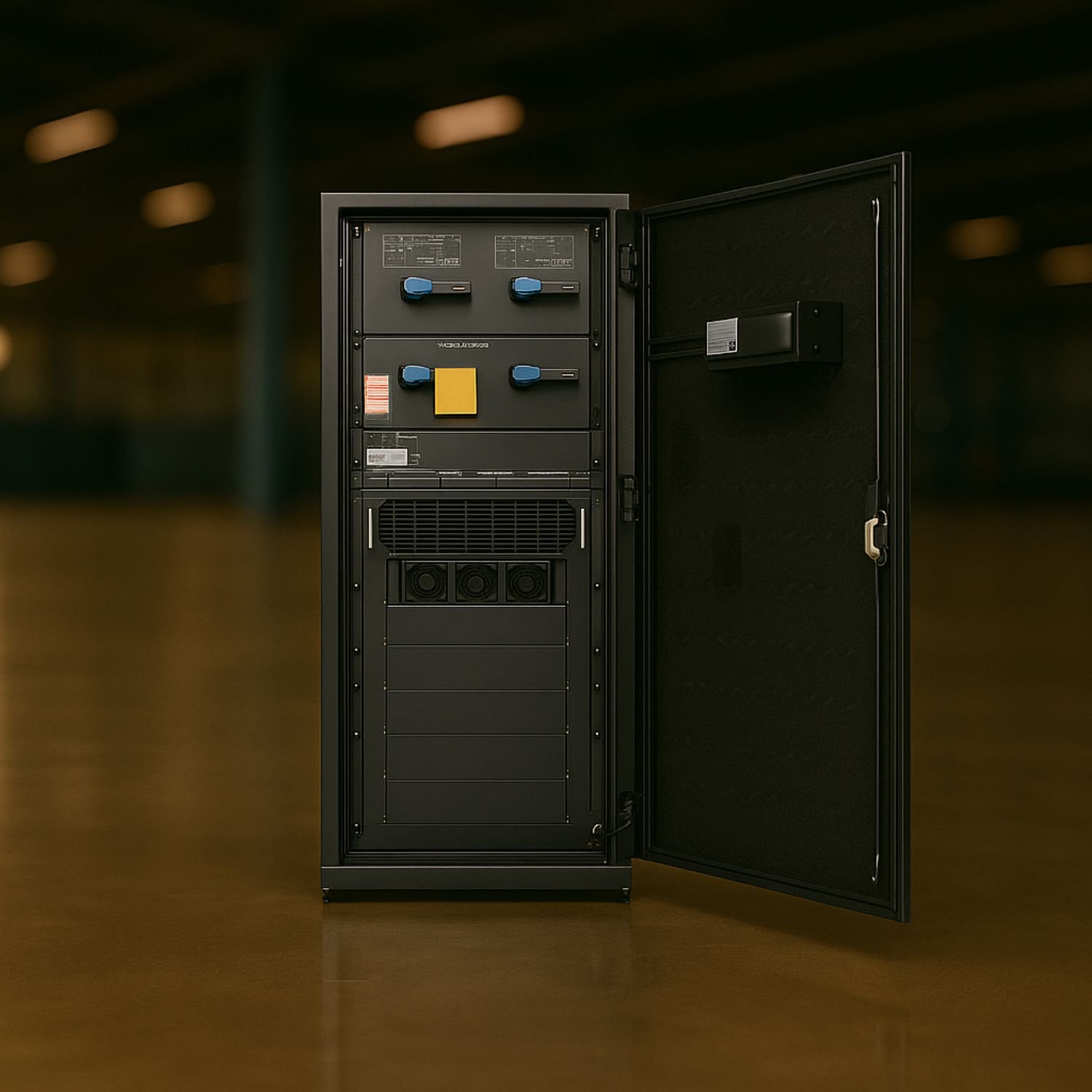

Modular Hot-Swappable Design – plug & play modules for easy scalability and maintenance.
Compact Footprint – saves valuable data center/plant floor space (600 kVA system only 0.8 m²).
Advanced DSP Digital Control – ensures precision, stability, and reliability.
Superior Overload Capacity – up to 150% sustained and 200% short-term.
Intelligent Battery Management (IBM) – extends battery life with SOC/SOH detection, temperature compensation, equalizing & float charging.
Flexible Battery Configuration – 30–50 pcs selectable.
User Friendly Interface – 7-inch LCD touch screen with multi-platform communication (SNMP, RS485, dry contacts).
High Reliability – MTBF >200,000 hours, MTTR <0.5 h.
Why Choose Lifetronics forUPS LXi660B ?
Data Centers & Cloud Hosting
Telecom Networks
Hospitals & Healthcare (ICU, OT, life support)
Industrial Automation & Manufacturing
Government, Defense & Aviation
Banking & Financial Institutions
