Plating Rectifier (PEC Type) – Lifetronics

A Plating Rectifier is a DC power supply designed specifically for electroplating processes such as zinc plating, nickel plating, copper plating, chromium plating, silver plating, and gold plating. Since plating requires low voltage but very high current, rectifiers ensure a stable, ripple-free DC output so that the coating is uniform, durable, and high quality.

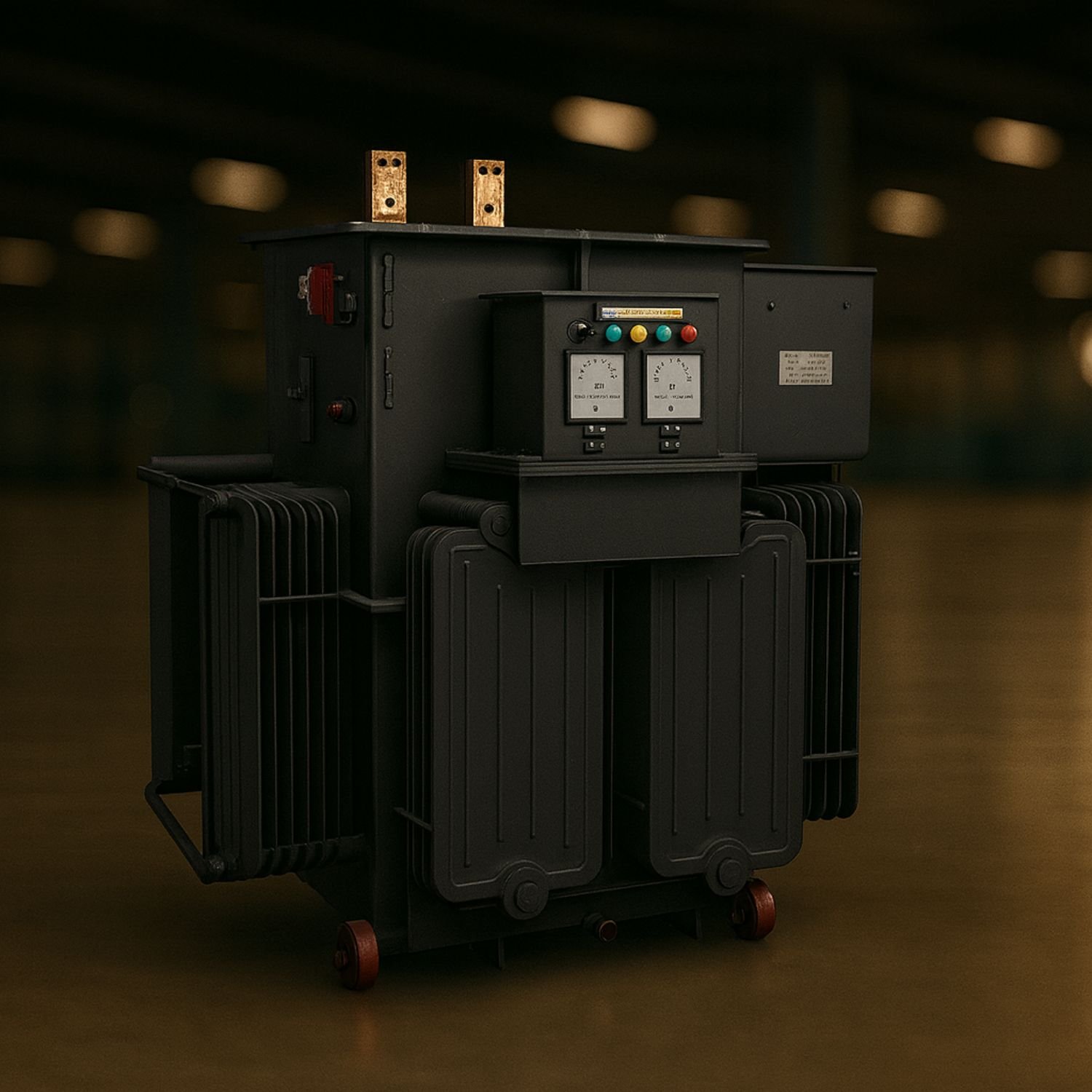

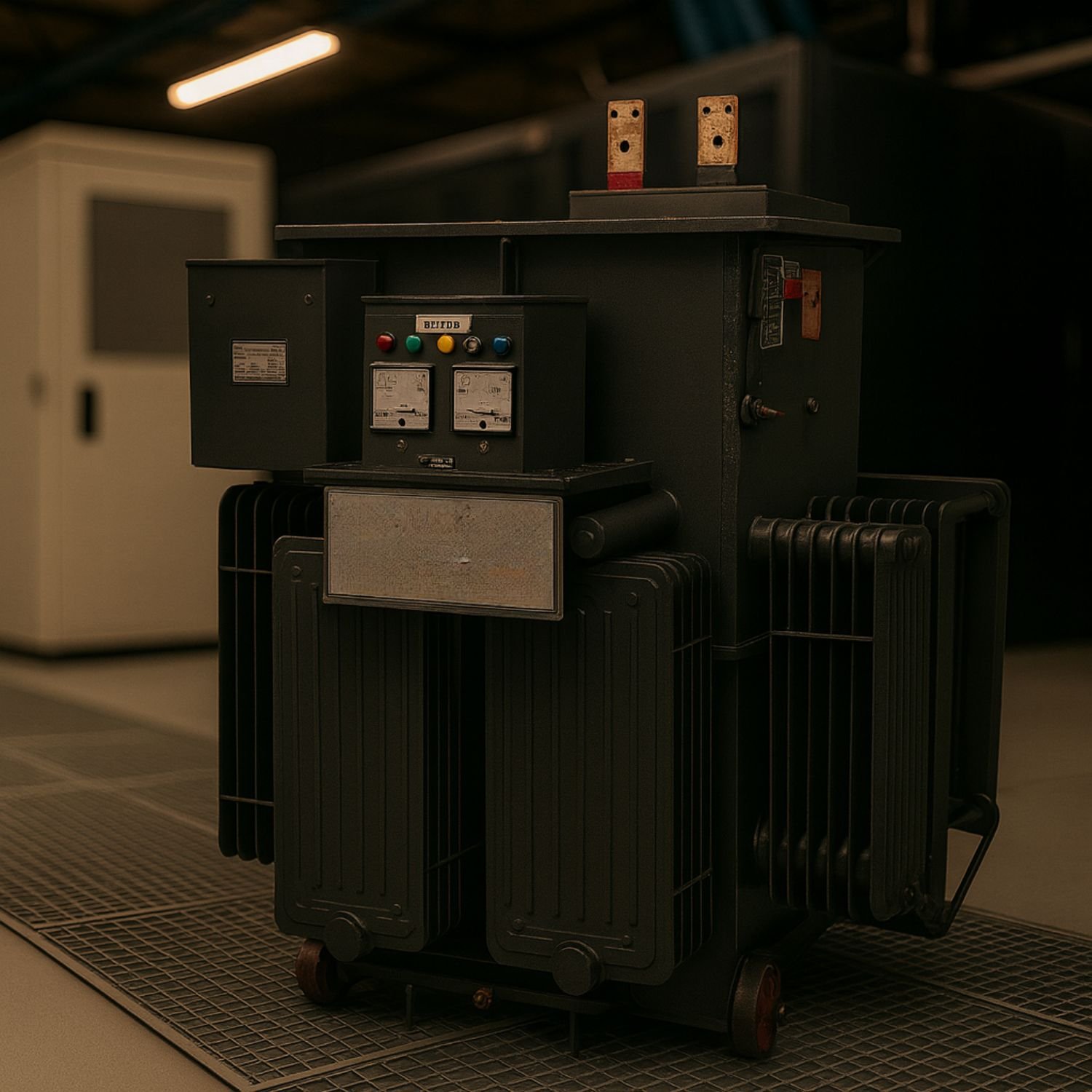

The PEC Plating Rectifier from Lifetronics is engineered for industrial electroplating applications where stable, ripple-free DC output is critical for uniform coating thickness and plating quality. With a power rating of 100 KW, output of 30V / 5000A, and advanced rolling contact voltage regulator technology, this rectifier ensures long service life, high efficiency, and 100% continuous duty operation.
Unlike conventional dimmerstat type regulators, our on-load motorized regulators use vertical rolling contact type voltage regulators with heavy copper strip winding, providing 4–5% better efficiency and a service life exceeding 25 years.
Call Now
Contact us
Years Experience
0 +

Applications of Electroplating Rectifiers

  • Electroplating – Zinc, Nickel, Copper, Chromium, Gold, Silver plating
  • Hard Chrome Plating – Automotive & aerospace parts, hydraulic rods
  • Jewelry & Precious Metal Plating – Decorative coatings
  • Industrial Hardware & Sanitaryware – Chrome finishing for taps, handles, fixtures
  • Engineering & Aerospace Components – Protective metal coatings
UPS Repair Services – Multi-Brand Expertise
If your UPS is not repairable, we also provide refurbished UPS exchange options with warranty to ensure uninterrupted backup power.
Contact us
Project Done
0 K+
Happy Customer
0 K+
Company Rating
0
Years Experience
0 +

Technical Specifications

  • Output Voltage: 30V DC

  • Output Current: 5000A

  • Power Rating: 100 KW

  • Input Supply: 380–440V AC, Three Phase

  • Technology: Rolling Contact Type (+/– Voltage Regulator, “Q” Connection)

  • Material: Electrolytic Grade Copper

  • Duty Cycle: 100% continuous duty

  • Efficiency: >95% (4–5% higher than conventional regulators)

  • Packaging: Wooden Packing

  • Port: JNPT Mumbai

  • Delivery Time: 15 Days

  • Payment Terms: L/C, D/P, T/T

Design Advantages

  • On-load motorized regulation → smooth, step-less DC voltage variation

  • Plus/Minus Type (+254V Star / +440V Delta) regulator connection → reduces brush current and improves reliability

  • Heavy-duty copper strip windings → higher efficiency and durability

  • Lower power losses → reduced operating costs

  • Long life → regulators last 25+ years

Why Choose Lifetronics Anodizing Rectifiers?

  • 17+ years of expertise in power & plating rectifiers

  • Stable DC output → ensures uniform oxide layer quality

  • Energy-efficient design → reduces electricity costs

  • Rugged & reliable → ideal for continuous industrial use

  • Custom-built solutions as per client needs

  • Pan-India & global supply (Asia, Africa & Europe)

  • Trusted by plating and anodizing units worldwide

Call +91 99984 31599 or  services@lifetronics.org to get the best deals on Isolation Transformers for your industry, business, or hospital.
