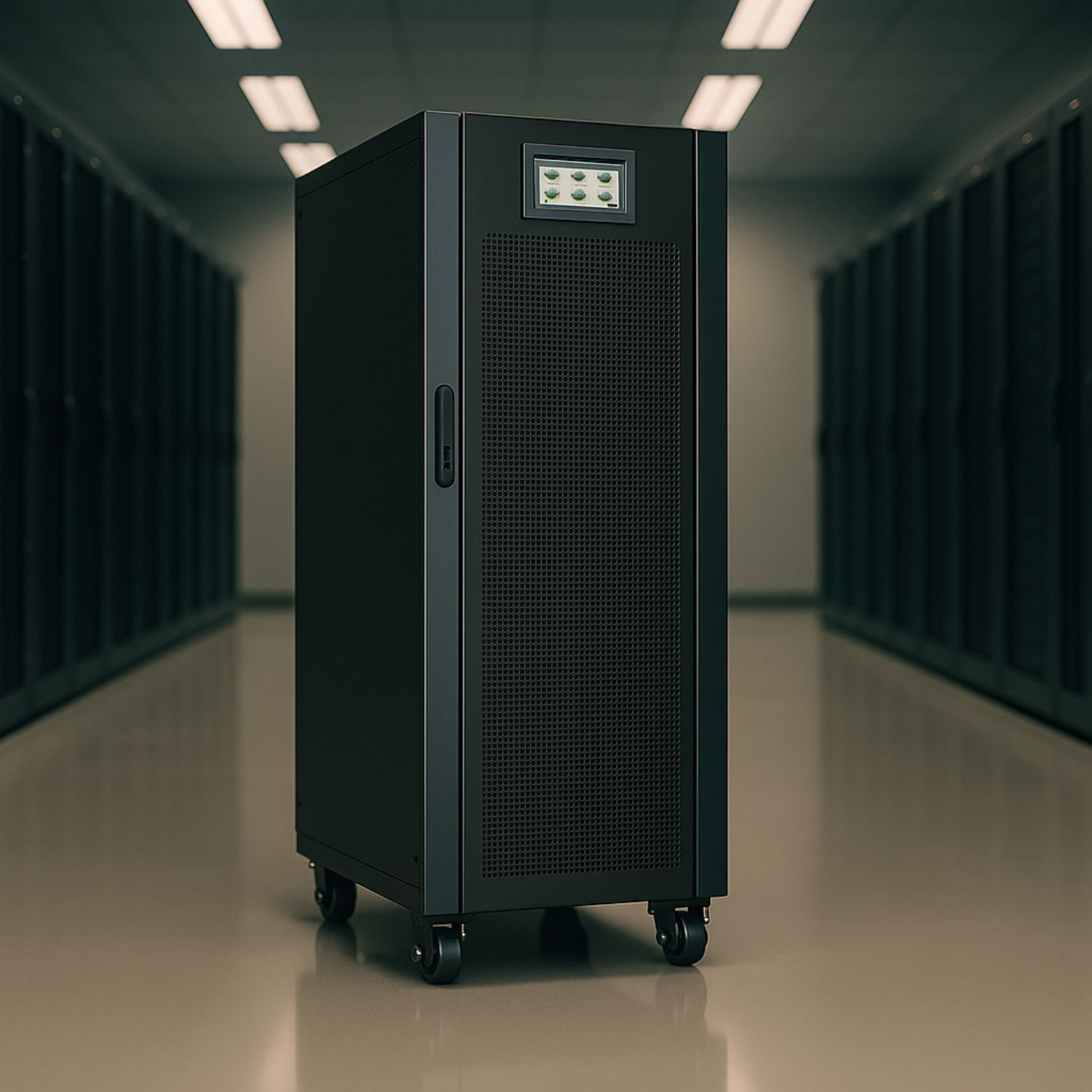

ONLINE UPS LXi990 Z4 – Lifetronics
Applications
- Hospitals & Medical Centers – MRI, CT, ICUs, labs, life-saving equipment
- Data Centers & IT – Servers, cloud storage, telecom base stations
- Industrial Automation – CNC machines, PLC, robotics, VFDs
- Government & Defense – Security systems, control rooms
- Corporate & Banking – Financial institutions, large office setups
Applications

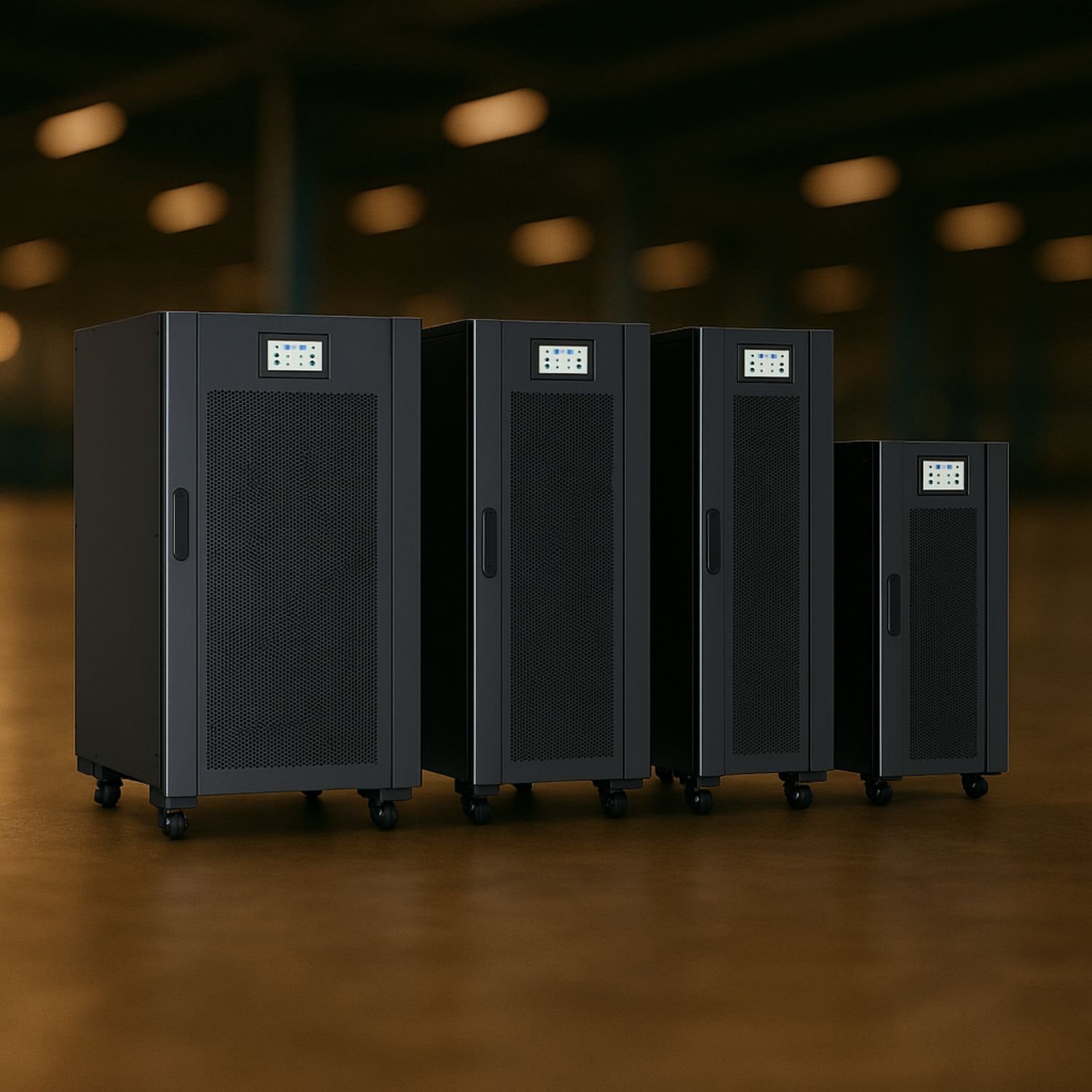

- LXi9940 – 40 kVA / 40 kW
- LXi9960 – 60 kVA / 60 kW
- LXi9980 – 80 kVA / 80 kW
- LXi9100 – 100 kVA / 100 kW
- LXi9120 – 120 kVA / 120 kW
- LXi9160 – 160 kVA / 160 kW
- LXi9200 – 200 kVA / 200 kW
Technical Specifications
| Parameter | Details |
|---|
| Capacity Range | 40 kVA to 200 kVA |
| Input Wiring | Three-phase, five-wire (3Φ + N + PE) |
| Rated Voltage | 380 / 400 / 415 Vac |
| Input Voltage Range | 304 – 485 Vac (no derating), 138 – 304 Vac (with derating 40–100% load) |
| Frequency Range | 40–70 Hz |
| Power Factor (Input) | >0.99 |
| THDi (Input) | ≤3% |
| Output Voltage | 380 / 400 / 415 Vac |
| Output Voltage Regulation | ±1% |
| Output Frequency | 50/60 Hz ±0.1 Hz (battery mode) |
| Waveform | Pure sinewave |
| Power Factor (Output) | 1.0 |
| Voltage Distortion (THDv) | ≤1% (linear load), ≤5% (non-linear load) |
| Overload Capacity | 105%–110% for 60 min, 125% for 10 min, 150% for 1 min, 150% for 0.2 s |
| DC Voltage | 192 Vdc (±180–264 Vdc settable) |
| Battery | 32 pcs (30–44 pcs configurable) |
| Max Charging Current | 12A / 24A / 36A / 48A (model dependent) |
| Efficiency | 96% (online mode), 99% (ECO mode) |
| Communication | RS232 / USB / RS485 / RJ45, SNMP & Wi-Fi optional |
| Display | 5-inch color LCD touch screen |
| Operating Temp. | 0°C – 40°C |
| Relative Humidity | 0–95% (non-condensing) |
| Noise Level | ≤65 dB |
| IP Rating | IP20 |
Key Features
Advanced dual-core DSP control with 3-level technology
Online double-conversion for clean, uninterrupted power supply
Output power factor 1.0 – delivers full kVA = kW performance
High efficiency up to 96% (online mode), 99% (ECO mode) – energy saving
Dual input design with independent bypass for enhanced reliability
Wide input voltage range (304–485 Vac) with auto-sensing frequency 50/60 Hz
Cold start capability – start UPS directly from batteries
Zero transfer time ensures uninterrupted supply during mains failure
Strong fault tolerance (fan redundancy design – even with partial failure, UPS operates)
Intelligent battery management with equalized/float charging & dormancy control
Advanced multi-platform communication (RS232, USB, RS485, RJ45, SNMP, Wi-Fi, GPRS)
Compact footprint with 5-inch LCD touch screen for real-time monitoring
Why Choose Lifetronics for LXi900 Z5?
Certified ISO 9001:2015 & CE compliant
Supply, installation & AMC across India, Asia, Africa & Europe
Technical expertise since 2007
Customized battery backup & UPS configurations available
Trusted by industries, hospitals, PSUs, and MNCs
