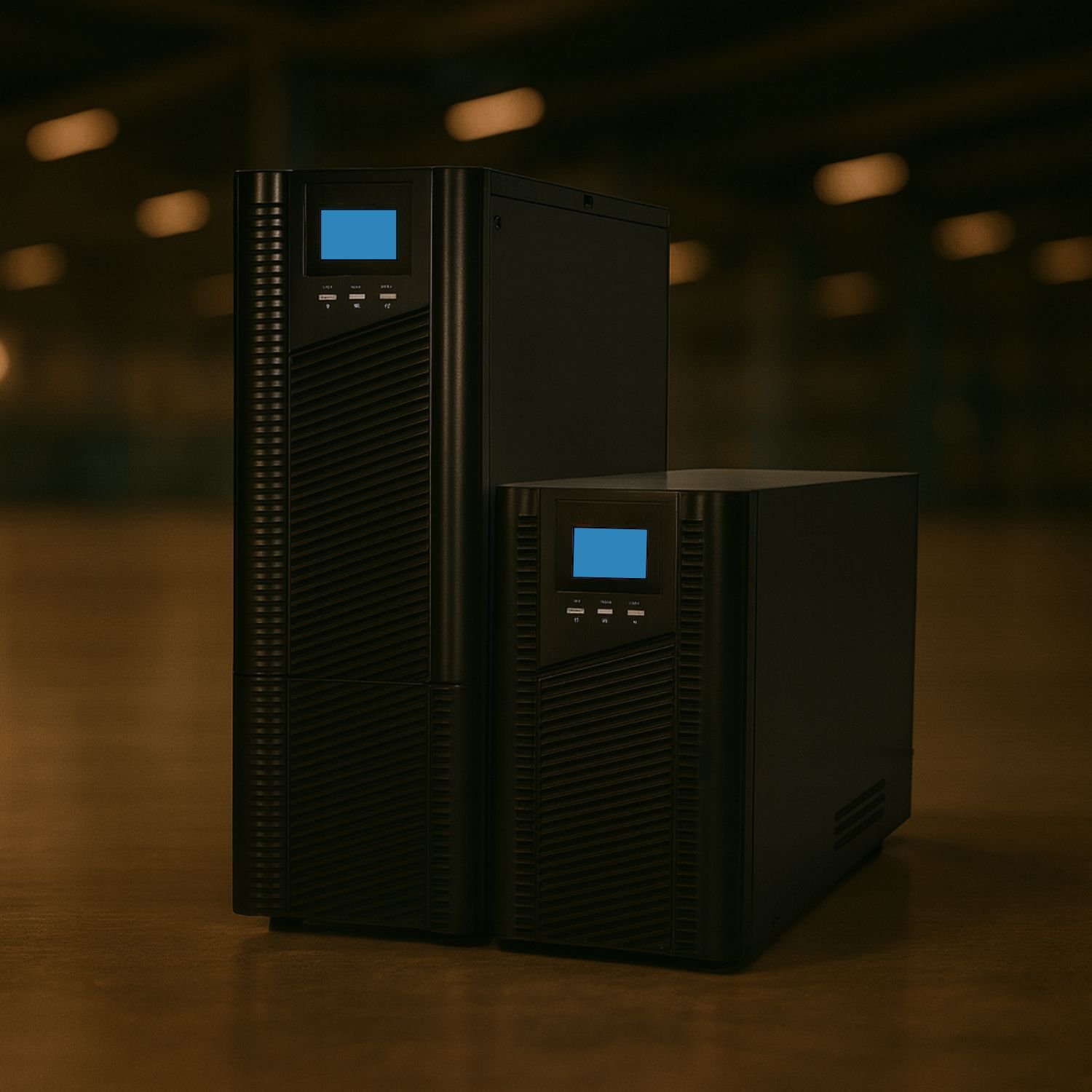

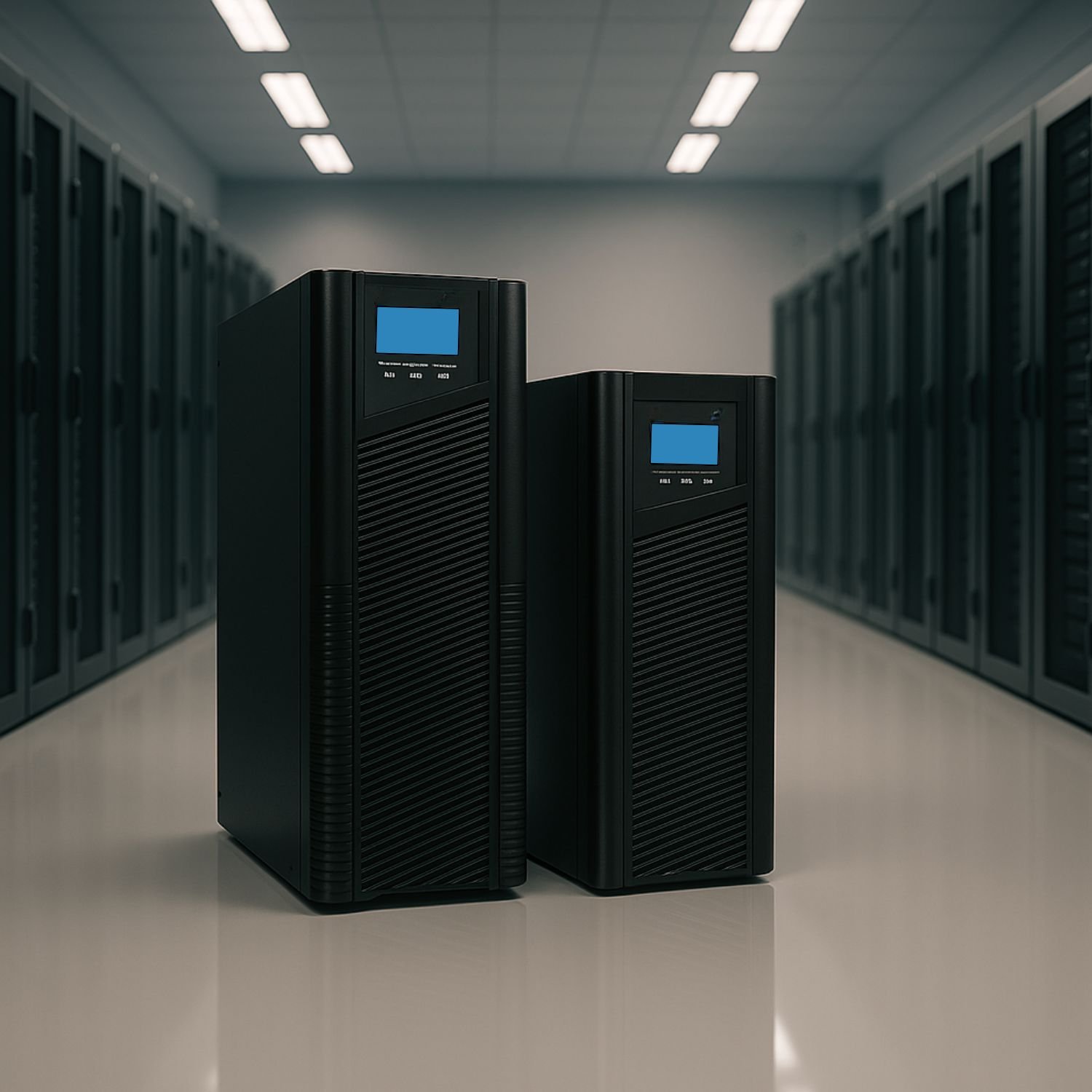

Online UPS Dalta Series
Online UPS Dalta Series
Online UPS Dalta Series – Lifetronics
Applications of Electroplating Rectifiers
- Hospitals & Healthcare – CT scanners, MRI, life support systems, labs
- Industrial Use – PLCs, CNC machines, factory automation
- Data Centers & IT – servers, storage, networking, telecom equipment
- Commercial – banking, BPOs, telecom offices
- Research & Defense – laboratories, R&D test benches
Technical Specifications
Capacity: 1 kVA to 10 kVA (single-phase)
Nominal Voltage: 220/230/240 VAC (1-Phase + N + PE, 3-wire)
Operating Voltage Range: 110V–300V AC (50% load), 140V–300V AC (full load)
Frequency Range: 50/60 Hz ±10% (auto sensing)
Power Factor: >0.99
Efficiency: Up to 94% (Double Conversion Mode), 99% (ECO Mode)
Waveform: Pure Sine Wave
Crest Factor: 3:1
Output Power Factor: 1.0 (Unity PF models)
Overload Capacity: 125% for 10 min, 125–150% for 1 min, >150% for 200ms
Transfer Time: Zero transfer AC to battery; Inverter to bypass <4ms
System Features
DSP-based dual control with high overload handling
IGBT rectifier & inverter for high efficiency and low harmonics
Cold start & generator compatible
Parallel operation & redundancy with current-sharing technology
LCD/LED display for voltage, frequency, battery, and load status
Protection against surge, short-circuit, over/under-voltage, overload, overcharge
Advanced communication: RS232, USB (standard), SNMP, Dry contacts, RS485 (optional)
Static Bypass switch standard, manual bypass optional
Battery System
DC Voltage: 36V, 48V, 72V, 96V, 120–240V (configurable by model)
Charging Current: 6.5–13A configurable (up to 24A optional)
Recharge Time: 8–12 hours (90% full capacity)
Battery Protection: Overcharge, reverse polarity, deep discharge
Why Choose Lifetronics for UPS?
Models from 1kVA to 10kVA (scalable to higher kVA)
High efficiency up to 99% ECO Mode → saves electricity
Unity Power Factor output → supports higher load capacity
2-Year Warranty & reliable service support
Pan-India availability & exports to Asia, Africa, Europe
Call +91 99984 31599 or services@lifetronics.org to get the best deals on Isolation Transformers for your industry, business, or hospital.
Since 2007, Lifetronics has delivered trusted industrial & medical electronics repair, UPS servicing, battery charger solutions, automation systems, and hospital equipment support across India, Asia, Africa & Europe.
