Modular UPS LXi660B – Lifetronics

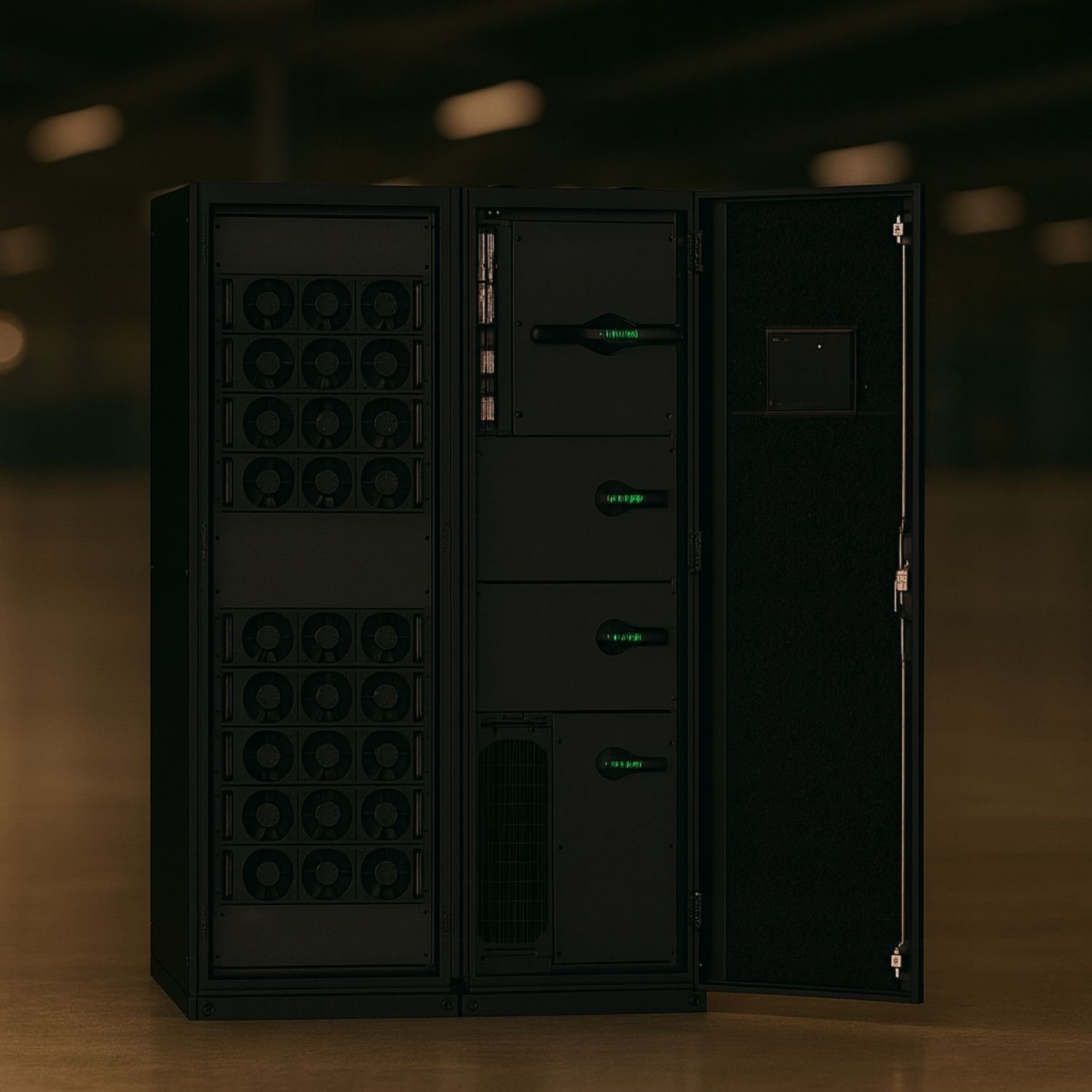

The LXi660B Modular UPS from the Nx660 series is designed for high-density data centers, IT infrastructure, and mission-critical industries. It delivers true online double conversion power protection with advanced DSP digital control and modular hot-swappable architecture. This ensures maximum reliability, high efficiency, and scalability for growing power needs.
With a power range of 50 kVA to 600 kVA in a single cabinet and parallel scalability up to 2.4 MW, the LXi660B is one of the most flexible and efficient modular UPS solutions available today.
The LXi660B Modular UPS provides unmatched energy efficiency, scalability, and reliability while reducing TCO (Total Cost of Ownership). Its hot-swappable modular design makes it ideal for modern data centers and enterprises looking for a future-proof UPS solution.
Call Now
Contact us
Years Experience
0 +

Models

  • LXi6600 – 50 kVA / 50 kW
  • LXi66200 – 200 kVA / 200 kW
  • LXi66300 – 300 kVA / 300 kW
  • LXi66400 – 400 kVA / 400 kW
  • LXi66500 – 500 kVA / 500 kW
  • LXi66600 – 600 kVA / 600 kW
UPS Repair Services – Multi-Brand Expertise
If your UPS is not repairable, we also provide refurbished UPS exchange options with warranty to ensure uninterrupted backup power.
Contact us
Project Done
0 K+
Happy Customer
0 K+
Company Rating
0
Years Experience
0 +

Technical Specifications

  • Capacity Range: 50 kVA ~ 600 kVA (single cabinet), expandable up to 2.4 MW

  • Input Voltage Range: 138–485 Vac (305–485 Vac without derating)

  • Frequency Range: 40–70 Hz

  • Input Power Factor: ≥ 0.99

  • Current Distortion (THDi): ≤ 3%

  • Output Voltage: 380/400/415 Vac ±1%

  • Output Power Factor: 1.0

  • Output Voltage Distortion (THDv): ≤ 1% (linear load), ≤ 3% (non-linear load)

  • Battery Voltage: ±240 Vdc (Selectable: 180–276 Vdc)

  • Number of Batteries: 40 pcs 12 V (30–46 pcs selectable)

  • Efficiency: 96.5% (Online), 99% (ECO mode)

  • Overload Capacity:

    • 105% ≤ load ≤ 110% → 60 mins

    • 110% ≤ load ≤ 125% → 10 mins

    • 125% ≤ load ≤ 150% → 1 min

    • Load ≤ 135% long term; <1000% for 100 ms

  • Parallel Redundancy: Up to 4 units

  • Communication: RS485, SNMP, Dry Contacts

  • Display: 7-inch LCD Touchscreen

  • Noise: ≤65–68 dB at 1m

  • Operating Temperature: 0–40°C

  • Protection Level: IP20

Key Features

  • High Power Factor 1.0 – Full kVA = kW output

  • 96.5% Efficiency in online mode; >99% in ECO mode

  • Scalability from 50 kVA to 600 kVA per cabinet, expandable to 2.4 MW with 4 cabinets in parallel

  • Modular Hot-Swappable Design – plug & play power, bypass & control modules

  • High MTBF & Low MTTR – maximum uptime with fast serviceability

  • Compact Footprint – saves floor space in critical environments

  • Green Technology – Input PF >0.99, THDi <3%

  • Wide Input Voltage Range (138–485 Vac) with 50/60 Hz adaptability

  • Advanced Battery Management with flexible configuration (30–46 pcs)

  • Strong Overload Capability – supports up to 135% long-term load

  • 7” LCD Touch Screen with SNMP, RS485 & dry contacts for monitoring

Applications

  • Data Centers & Cloud Infrastructure

  • Banking & Financial Institutions

  • Telecom Networks

  • Industrial Automation & Process Control

  • Hospitals & Critical Medical Facilities

  • Security Systems & Defense Installations

  • Utility & Power Distribution
