LXHI Solar 30kw– Lifetronics

It’s a three-phase, high-capacity solar inverter designed for commercial, industrial, and large-scale solar installations. The 30kW model is generally used in solar power plants, factories, hospitals, schools, hotels, and business complexes where large power backup and solar integration are required.

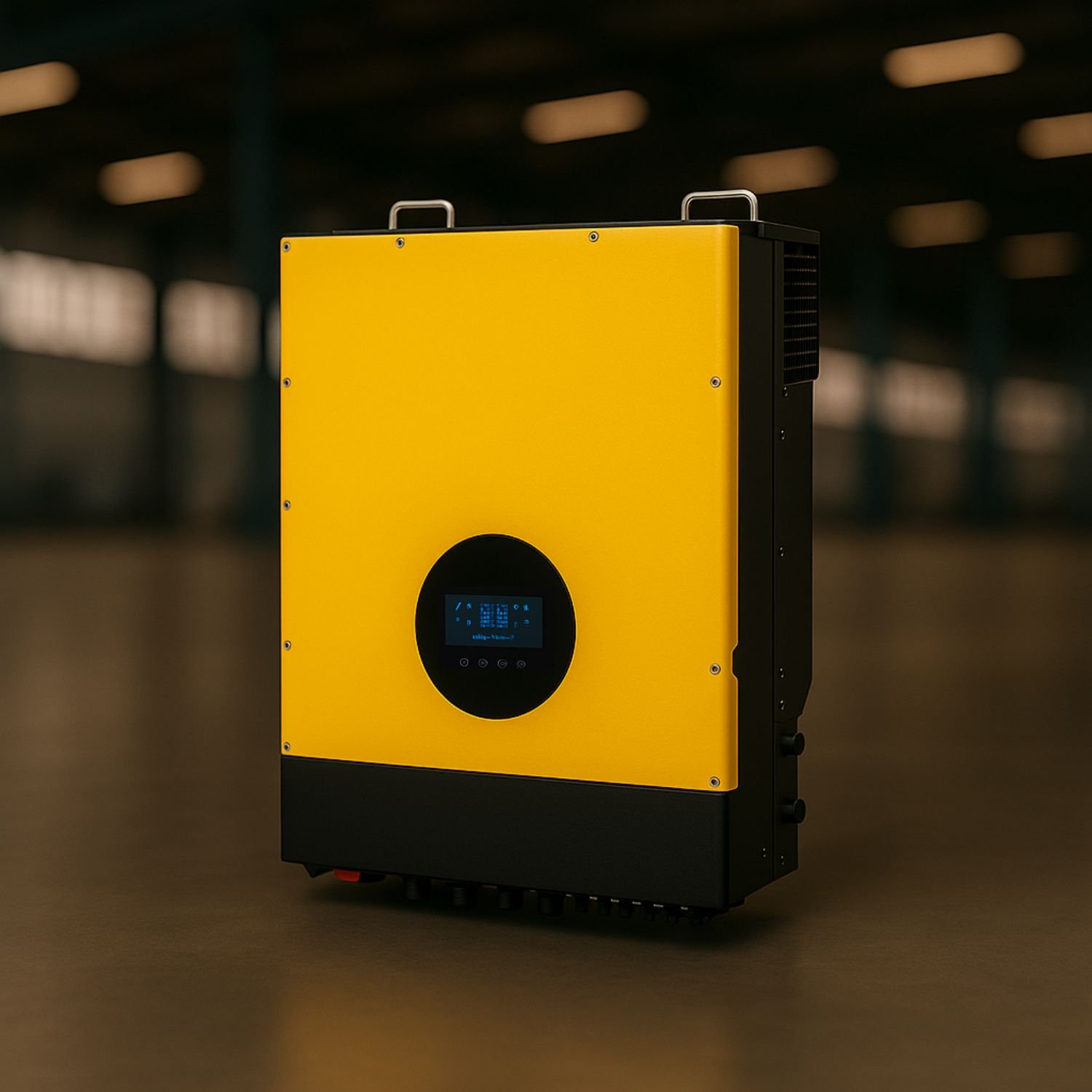

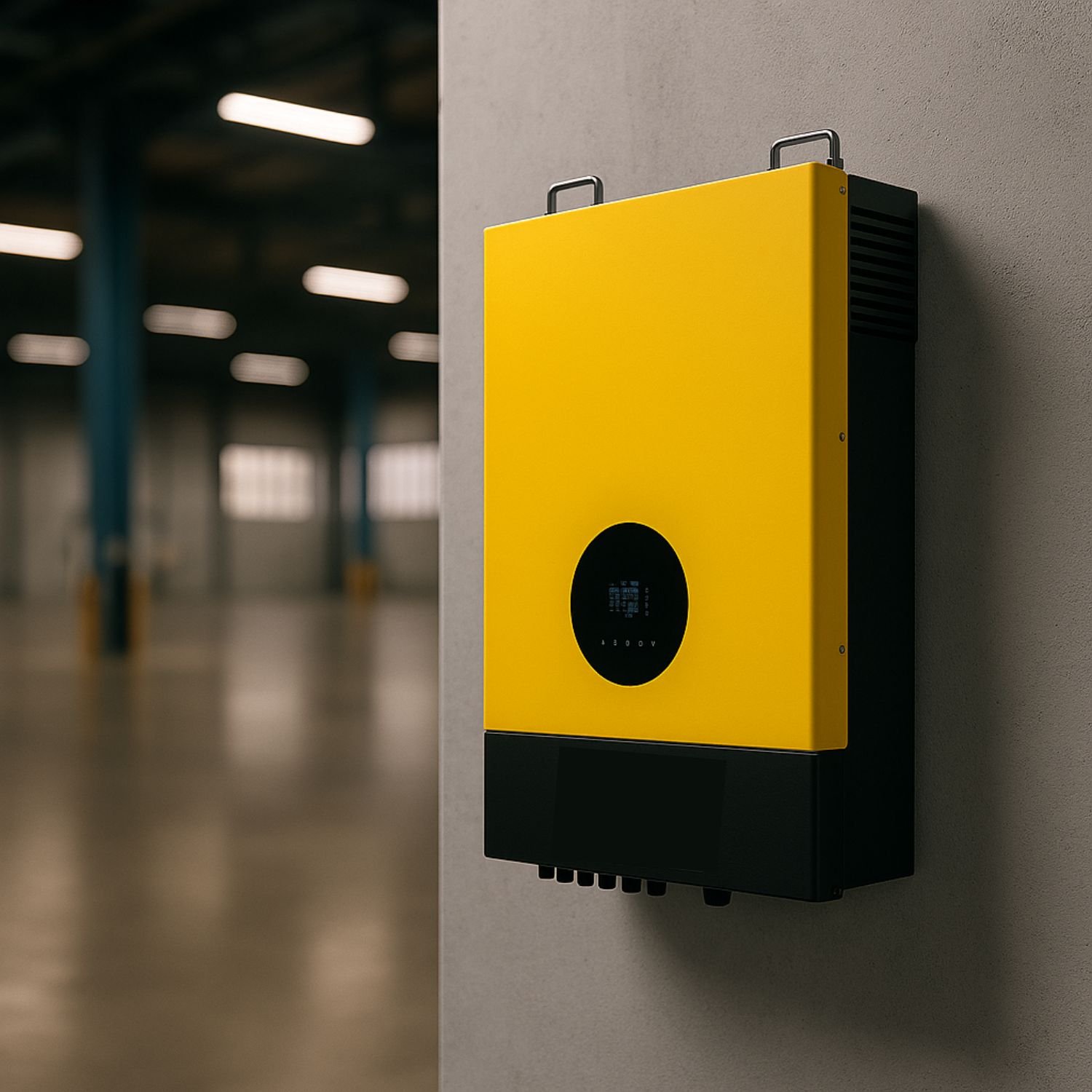

The LXHI 30kW Solar Hybrid Inverter is a high-capacity, three-phase inverter designed for industrial, commercial, and institutional solar applications. With 30,000W rated output power, advanced MPPT technology, and hybrid functionality (grid-tie + off-grid + battery backup), this inverter ensures maximum efficiency, stability, and reliability for large-scale power needs.
Built with IP65 waterproof and dustproof protection, third-generation SiC MOSFET technology, and Wi-Fi monitoring, it is ideal for factories, hospitals, commercial complexes, schools, and solar farms.
Call Now
Contact us
Years Experience
0 +

Applications

  • Industrial Facilities – Steel, textile, chemical & manufacturing plants
  • Hospitals & Healthcare Centers – MRI, CT, labs, and critical equipment
  • Commercial Buildings – IT parks, malls, hotels, educational institutions
  • Solar Farms & Microgrids – Large-scale renewable energy projects
  • Residential Societies – Villas, apartments, and high-load residential clusters
UPS Repair Services – Multi-Brand Expertise
If your UPS is not repairable, we also provide refurbished UPS exchange options with warranty to ensure uninterrupted backup power.
Contact us
Project Done
0 K+
Happy Customer
0 K+
Company Rating
0
Years Experience
0 +

Technical Highlights

  • Rated Output Power: 30,000W (30kW)

  • Max PV Input Power: 30,000W

  • PV Voltage Range: 350–1000VDC

  • MPPT Trackers: 3 / Max Input Current: 26A × 2, 26A × 2, 26A × 2

  • Efficiency (DC/AC): 96.5%

  • Nominal Output Voltage: 230VAC (P-N) / 400VAC (P-P)

  • Battery Voltage Range: 500–900VDC, 50A charging current

  • Dimensions: 255 × 660 × 750 mm | Weight: 82 kg

  • Operating Temp: –10°C to +50°C | Humidity: 0–100% RH (non-condensing)

  • Compliance: IEC62109, IEC61727, EN61000, EN62477, CE certified

Why Buy from Lifetronics?

  • Leading 30kW Solar Inverter supplier in India

  • 17+ years of expertise in solar & power electronics

  • Custom inverter solutions for industries, hospitals & commercial setups

  • Pan-India delivery and export to Asia, Africa & Europe

  • Trusted after-sales support & genuine spare parts

Key Features & Purpose

  • 30kW Three Phase Hybrid Solar Inverter

  • Pure sine wave output with high efficiency (96.5%)

  • IP65 waterproof & dustproof design for outdoor installation

  • Built-in third-generation SiC MOSFET for improved performance

  • Accepts dual AC inputs – utility power & generator input

  • Built-in Wi-Fi monitoring with mobile app (Android/iOS)

  • User-adjustable charging current (up to 50A)

  • Wide battery input range (500–900VDC)

  • Built-in BMS communication port (RS485)

  • Parallel operation support – up to 4 units

  • Anti-Islanding protection for grid safety

  • Smart communication interfaces: RS232, USB, RS485, SNMP, MODBUS
